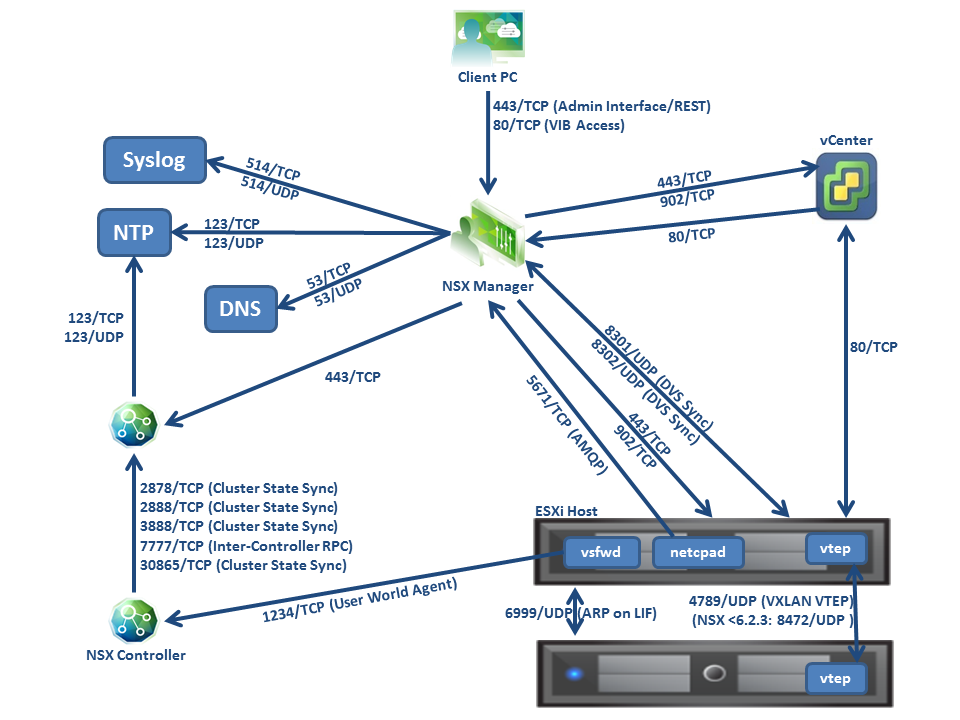

VMware NSX 6 Component Communication Diagram

This post provides information on the required ports for VMware NSX for vSphere 6.

Ports requirements for communication between components

Client PC > NSX Manager 443/TCP (NSX Manager Administrative Interface)
Client PC > NSX Manager 80/TCP (NSX Manager VIB Access)
ESXi Host > ESXi Host 6999/UDP (ARP on VLAN LIFs)
ESXi Host > NSX Controller 1234/TCP (User World Agent Connection)
ESXi Host > NSX Manager 5671/TCP (AMQP)
ESXi Host > NSX Manager 8301, 8302/UDP (DVS Sync)
ESXi Host > vCenter Server 80/TCP (ESXi Host Preparation)
NSX Controller > NSX Controller 2878, 2888, 3888/TCP (Controller Cluster - State Sync)
NSX Controller > NSX Controller 30865/TCP (Controller Cluster -State Sync )
NSX Controller > NSX Controller 7777/TCP (Inter-Controller RPC Port)
NSX Controller > NTP Time Server 123/TCP (NTP client connection)
NSX Controller > NTP Time Server 123/UDP (NTP client connection)
NSX Manager > DNS Server 53/TCP (DNS client connection)
NSX Manager > DNS Server 53/UDP (DNS client connection)
NSX Manager > ESXi Host 443/TCP (Management and provisioning connection)
NSX Manager > ESXi Host 8301, 8302/UDP (DVS Sync)
NSX Manager > ESXi Host 902/TCP (Management and provisioning connection)
NSX Manager > NSX Controller 443/TCP (Controller to Manager Communication)
NSX Manager > NTP Time Server 123/TCP (NTP client connection)
NSX Manager > NTP Time Server 123/UDP (NTP client connection)
NSX Manager > Syslog Server 514/TCP (Syslog connection)
NSX Manager > Syslog Server 514/UDP (Syslog connection)
NSX Manager > vCenter Server 443/TCP (vSphere Web Access)
NSX Manager > vCenter Server 902/TCP (vSphere Web Access)
REST Client > NSX Manager 443/TCP (NSX Manager REST API)
vCenter Server > ESXi Host 80/TCP (ESXi Host Preparation)
vCenter Server > NSX Manager 80/TCP (Host Preparation)
VTEP > VTEP 4789/UDP (Transport network encapsulation between VTEPs.)
VTEP > VTEP 8472/UDP Default Port changed in NSX 6.2.3

  1. Hot VMware Topics - May 2016 - pingback on June 8, 2016 at 4:53 pm
  2. This diagram is wrong !
    vsfwd speacks with NSX Manager not with NSX Controler.
    TYPO : it is netcpa not netcpad
    Olivier
    NSX VMware Support :)

    • Thanks for the heads-up.
      Is it possible that I've just mixed up vsfwd and netcpa? It seems to be correct that the ESXi host talks to the Controller Cluster on port 1234/TCP, but its netcpa instead of vsfwd. Also it is the vsfwd that talks to the Manager on 5671/TCP?
