Intel CPU EVC Matrix (VMware Enhanced vMotion Compatibility)

Intel uses a model named "Tick-Tock" to follow every microarchitectural change with a die shrink. This results in having two EVC baselines for every microarchitecture. I've created a small table with a quick overview about EVC Modes with their appropriate CPU Series and Codenames used by Intel to denote their CPUs. I've also included additional Codenames that may be used by Intel for special processors. The upcoming Haswell architecture is named, but not yet available or supported by VMware.

This post is updated regularly. [Last Update: November 2016]

EVC introduced Baseline µarch aka. CPU Series
L0 vSphere 4.0 Merom Core Conroe
Tigerton
Woodcrest
Clovertown
Kentsfield
30xx Series
32xx Series
51xx Series
53xx Series
72xx Series
73xx Series
L1 Penryn Dunnington
Harpertown
Yorkfield
Wolfdale
31xx Series
33xx Series
52xx Series
54xx Series
74xx Series
L2 Nehalem Nehalem Beckton
Gainestown
Bloomfield
Lynnfield
Clarksfield
34xx Lynnfield
35xx Series
55xx Series
65xx Series
75xx Series
i3-2100 Series
L3 vSphere 4.1 Westmere Gulftown
Clarkdale
Arrandale
i3/i5 Clarkdale
34xx Clarkdale
36xx Series
56xx Series
E7-2800 Series
E7-4800 Series
E7-8800 Seriee
Core i7-620LE
L4 vSphere 5.0 Sandy
Bridge
Sandy
Bridge
E3-1100 Series
E3-1200 Series
E5-1400 Series
E5-1600 Series
E5-2400 Series
E5-2600 Series
E5-4600 Series
L5 vSphere 5.1 Ivy Bridge i3-3200 Series
i7-3500-LE/UE Series
i7-3600-QE Series
Xeon E3-1100-C-v2 Series
Xeon E3-1200-v2 Series
Xeon E5-1400-v2 Series
Xeon E5-1600-v2 Series
Xeon E5-2400-v2 Series
Xeon E5-2600-v2 Series
Xeon E5-4600-v2 Series
Xeon E7-8800-v2 Series
Xeon E7-4800-v2 Series
Xeon E7-2800-v2 Series
L6  vSphere 6.0 Haswell Haswell E3-1200-v3 Series
E5-1400-v3 Series
E5-1600-v3 Series
E5-2400-v3 Series
E5-2600-v3 Series
i3-4300 Series
i5-4500-TE Series
i7-4700-EQ Series
L7  vSphere 6.5 Broadwell
Skylake Skylake

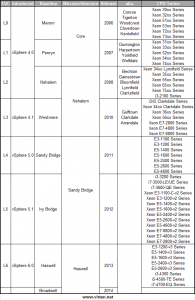

PNG-Verison:
Intel_EVC_Processor_matrix_2015

Intel CPU Series EVC Interoperability Matrix

EVC L0
Merom
EVC L1
Penryn
EVC L2
Nehalem
EVC L3
Westmere
EVC L4
Sandy Bridge
EVC L5
Ivy Bridge
Xeon 30xx Series
yes
no
no
no
no
no
Xeon 32xx Series
yes
no
no
no
no
no
Xeon 51xx Series
yes
no
no
no
no
no
Xeon 53xx Series
yes
no
no
no
no
no
Xeon 72xx Series
yes
no
no
no
no
no
Xeon 73xx Series
yes
no
no
no
no
no
Xeon 31xx Series
yes
yes
no
no
no
no
Xeon 33xx Series
yes
yes
no
no
no
no
Xeon 52xx Series
yes
yes
no
no
no
no
Xeon 54xx Series
yes
yes
no
no
no
no
Xeon 74xx Series
yes
yes
no
no
no
no
Xeon 34xx Lynnfield Series
yes
yes
yes
no
no
no
Xeon 35xx Series
yes
yes
yes
no
no
no
Xeon 55xx Series
yes
yes
yes
no
no
no
Xeon 65xx Series
yes
yes
yes
no
no
no
Xeon 75xx Series
yes
yes
yes
no
no
no
i3-2100 Series
yes
yes
yes
no
no
no
i3/i5 Clarkdale Series
yes
yes
yes
yes
no
no
Xeon 34xx Clarkdale Series
yes
yes
yes
yes
no
no
Xeon 36xx Series
yes
yes
yes
yes
no
no
Xeon 56xx Series
yes
yes
yes
yes
no
no
Xeon E7-2800 Series
yes
yes
yes
yes
no
no
Xeon E7-4800 Series
yes
yes
yes
yes
no
no
Xeon E7-8800 Series
yes
yes
yes
yes
no
no
Core i7-620LE
yes
yes
yes
yes
no
no
Xeon E3-1100 Series
yes
yes
yes
yes
yes
no
Xeon E3-1200 Series
yes
yes
yes
yes
yes
no
Xeon E5-1400 Series
yes
yes
yes
yes
yes
no
Xeon E5-1600 Series
yes
yes
yes
yes
yes
no
Xeon E5-2400 Series
yes
yes
yes
yes
yes
no
Xeon E5-2600 Series
yes
yes
yes
yes
yes
no
Xeon E5-4600 Series
yes
yes
yes
yes
yes
no
i7-3600-QE
yes
yes
yes
yes
yes
yes
Xeon E3-1100-C-v2 Series
yes
yes
yes
yes
yes
yes
Xeon E3-1200-v2 Series
yes
yes
yes
yes
yes
yes
Xeon E5-1400-v2 Series
yes
yes
yes
yes
yes
yes
Xeon E5-2400-v2 Series
yes
yes
yes
yes
yes
yes
Xeon E5-2600-v2 Series
yes
yes
yes
yes
yes
yes
Xeon E3-1200-v3 Series*
yes
yes
yes
yes
yes
yes
i3-4300 Series*
yes
yes
yes
yes
yes
yes
i5-4500-TE Series*
yes
yes
yes
yes
yes
yes
i7-4700-EQ Series*
yes
yes
yes
yes
yes
yes
*Haswell CPU EVC L0
Merom
EVC L1
Penryn
EVC L2
Nehalem
EVC L3
Westmere
EVC L4
Sandy Bridge
EVC L5
Ivy Bridge

Detailed CPU List

EVC Baseline CPU List
L0 Merom 3040, 3050, 3050, 3060, 3065, 3070, 5110, 5113, 5120, 5128, 5130, 5133, 5138, 5140, 5148, 5150, 5160, E5310, E5320, E5335, E5345, E7210, E7220, E7310, E7320, E7330, E7340, L5310, L5318, L5320, L5335, L7345, X3210, X3220, X3230, X5355, X5365, X7350
L1 Penryn E3110, E3120, E3120, E5205, E5220, E5405, E5410, E5420, E5430, E5440, E5450, E5462, E5472, E7420, E7430, E7440, E7450, L3110, L3360, L5215, L5240, L5410, L5420, L5430, L7445, L7455, X3320, X3330, X3350, X3360, X3370, X3380, X5260, X5270, X5272, X5450, X5460, X5470, X5472, X5482, X5492, X7460
L2 Nehalem E5502, E5503, E5503, E5504, E5506, E5507, E5520, E5530, E5540, E6510, E6540, E7520, E7530, E7540, L3426, L5506, L5520, L5530, L7545, L7555, W3520, W3530, W3540, W3550, W3565, W3570, W3580, W5580, W5590, X3430, X3440, X3450, X3460, X3470, X3480, X5550, X5560, X5570, X6550, X7542, X7550, X7560
L3 Westmere X5690, X5687, X5680, X5677, X5675, X5672, X5670, X5667, X5660, X5650, X5647, L5640, L5638, L5630, L5618, L5609, E5649, E5645, E5640, E5630, E5620, E5607, E5606, E5603, W3680, W3670, E7-8830, E7-8837, E7-8850, E7-8860, E7-8867L, E7-8870, E7-4807, E7-4820, E7-4830, E7-4850, E7-4860, E7-4870, E7-2803, E7-2820, E7-2830, E7-2850, E7-2860, E7-2870
L4 Sandy Bridge E3-1220, E3-1220L, E3-1225, E3-1230, E3-1235, E3-1240, E3-1245, E3-1260L, E3-1270, E3-1275, E3-1280, E3-1290, E5-1428L, E5-1620, E5-1650, E5-1660, E5-2403, E5-2407, E5-2418L, E5-2420, E5-2428L, E5-2430, E5-2430L, E5-2440, E5-2448L, E5-2450, E5-2450L, E5-2470, E5-2603, E5-2609, E5-2620, E5-2630, E5-2630L, E5-2637, E5-2640, E5-2643, E5-2648L, E5-2650, E5-2650L, E5-2658, E5-2660, E5-2665, E5-2667, E5-2670, E5-2680, E5-2687W, E5-2690, E5-4603, E5-4607, E5-4610, E5-4617, E5-4620, E5-4640, E5-4650, E5-4650L, G440, G460, G465, G470, G530, G530T, G540, G540T, G550, G550T, G555, G620, G620T, G622, G630, G630T, G632, G640, G640T, G645, G645T, G840, G850, G860, G860T, G870, i3-2100, i3-2100T, i3-2102, i3-2105, i3-2120, i3-2120T, i3-2125, i3-2130, i3-2310E, i3-2310M, i3-2312M, i3-2328M, i3-2330E, i3-2330M, i3-2340UE, i3-2348M, i3-2350M, i3-2357M, i3-2365M, i3-2367M, i3-2370M, i3-2375M, i3-2377M, i5-2300, i5-2310, i5-2320, i5-2380P, i5-2390T, i5-2400, i5-2400S, i5-2405S, i5-2410M, i5-2430M, i5-2435M, i5-2450M, i5-2450P, i5-2467M, i5-2500, i5-2500K, i5-2500S, i5-2500T, i5-2510E, i5-2515E, i5-2520M, i5-2537M, i5-2540M, i5-2550K, i5-2557M, i7-2600, i7-2600K, i7-2600S, i7-2610UE, i7-2617M, i7-2620M, i7-2629M, i7-2630QM, i7-2635QM, i7-2637M, i7-2640M, i7-2649M, i7-2655LE, i7-2657M, i7-2670QM, i7-2675QM, i7-2677M, i7-2700K, i7-2710QE, i7-2715QE, i7-2720QM, i7-2760QM, i7-2820QM, i7-2860QM, i7-2920XM, i7-2960XM, i7-3820, i7-3930K, i7-3960X, i7-3970X, 807UE, 827E, 847E, B710, B720, B800, B810, B810E, B815, B820, B830, B840, B940, B950, B960, B970, B980
L5 Ivy Bridge E3-1220LV2, E3-1220V2, E3-1225V2, E3-1230V2, E3-1240V2, E3-1245V2, E3-1265LV2, E3-1270V2, E3-1275V2, E3-1280V2, E3-1290V2, E5-1428LV2, E5-1620V2, E5-1650V2, E5-1660V2, E5-2403V2, E5-2407V2, E5-2418LV2, E5-2420V2, E5-2428LV2, E5-2430LV2, E5-2430V2, E5-2440V2, E5-2448LV2, E5-2450LV2, E5-2450V2, E5-2470V2, E5-2603V2, E5-2609V2, E5-2618LV2, E5-2620V2, E5-2628LV2, E5-2630LV2, E5-2630V2, E5-2637V2, E5-2640V2, E5-2643V2, E5-2648LV2, E5-2650LV2, E5-2650V2, E5-2658V2, E5-2660V2, E5-2667V2, E5-2670V2, E5-2680V2, E5-2687WV2, E5-2690V2, E5-2695V2, E5-2697V2, E5-4603V2, E5-4607V2, E5-4610V2, E5-4620V2, E5-4624LV2, E5-4627V2, E5-4640V2, E5-4650V2, E5-4657LV2, E7-2850V2, E7-2870V2, E7-2880V2, E7-2890V2, E7-4809V2, E7-4820V2, E7-4830V2, E7-4850V2, E7-4860V2, E7-4870V2, E7-4880V2, E7-4890V2, E7-8850V2, E7-8857V2, E7-8870V2, E7-8880LV2, E7-8880V2, E7-8890V2, E7-8891V2, E7-8893V2, G1610, G1610T, G1620, G1620T, G1630, G2010, G2020, G2020T, G2030, G2030T, G2100T, G2120, G2120T, G2130, G2140, i3-3110M, i3-3120M, i3-3120ME, i3-3130M, i3-3210, i3-3217U, i3-3217UE, i3-3220, i3-3220T, i3-3225, i3-3227U, i3-3229Y, i3-3240, i3-3240T, i3-3245, i3-3250, i3-3250T, i5-3210M, i5-3210M, i5-3230M, i5-3230M, i5-3317U, i5-3320M, i5-3330, i5-3330S, i5-3337U, i5-3339Y, i5-3340, i5-3340M, i5-3340S, i5-3350P, i5-3360M, i5-3380M, i5-3427U, i5-3437U, i5-3439Y, i5-3450, i5-3450S, i5-3470, i5-3470S, i5-3470T, i5-3475S, i5-3550, i5-3550S, i5-3570, i5-3570K, i5-3570S, i5-3570T, i5-3610ME, i7-3517U, i7-3517UE, i7-3520M, i7-3537U, i7-3540M, i7-3555LE, i7-3610QE, i7-3610QM, i7-3612QE, i7-3612QM, i7-3612QM, i7-3615QE, i7-3615QM, i7-3630QM, i7-3632QM, i7-3632QM, i7-3635QM, i7-3667U, i7-3687U, i7-3689Y, i7-3720QM, i7-3740QM, i7-3770, i7-3770K, i7-3770S, i7-3770T, i7-3820QM, i7-3840QM, i7-3920XM, i7-3940XM, i7-4820K, i7-4930K, i7-4960X, 1000M, 1005M, 1007U, 1017U, 1019Y, 1020E, 1020M, 1037U, 1047UE, 1405V2, 2020M, 2030M, 2117U, 2127U, 2129Y, 927UE, A1018
L6 Haswell E3-1220 v3, E3-1220LV3, E3-1225V3, E3-1226V3, E3-1230 v3, E3-1230Lv3, E3-1231V3, E3-1240 v3, E3-1240LV3, E3-1241V3, E3-1245 v3, E3-1246V3, E3-1265Lv3, E3-1268LV3, E3-1270 v3, E3-1271V3, E3-1275 v3, E3-1275LV3, E3-1276V3, E3-1280 v3, E3-1281V3, E3-1285 v3, E3-1285Lv3, E3-1286LV3, E3-1286V3, E5-1428LV3, E5-1620V3, E5-1630V3, E5-1650V3, E5-1660V3, E5-1680V3, E5-2408LV3, E5-2418LV3, E5-2428LV3, E5-2438LV3, E5-2603V3, E5-2608LV3, E5-2609V3, E5-2618LV3, E5-2620V3, E5-2623V3, E5-2628LV3, E5-2630LV3, E5-2630V3, E5-2637V3, E5-2640V3, E5-2643V3, E5-2648LV3, E5-2650LV3, E5-2650V3, E5-2658AV3, E5-2658V3, E5-2660V3, E5-2667V3, E5-2670V3, E5-2680V3, E5-2683V3, E5-2687WV3, E5-2690V3, E5-2695V3, E5-2697V3, E5-2698V3, E5-2699V3, G1820, G1820T, G1820TE, G1830, G1840, G1840T, G1850, G3220, G3220T, G3240, G3240T, G3250, G3250T, G3258, G3320TE, G3420, G3420T, G3430, G3440, G3440T, G3450, G3450T, G3460, i3-4000M, i3-4005U, i3-4010U, i3-4010Y, i3-4012Y, i3-4020Y, i3-4025U, i3-4030U, i3-4030Y, i3-4100E, i3-4100M, i3-4100U, i3-4102E, i3-4110E, i3-4110M, i3-4112E, i3-4120U, i3-4130, i3-4130T, i3-4150, i3-4150T, i3-4158U, i3-4160, i3-4160T, i3-4330, i3-4330T, i3-4330TE, i3-4340, i3-4340TE, i3-4350, i3-4350T, i3-4360, i3-4360T, i3-4370, i5-4200H, i5-4200M, i5-4200U, i5-4200Y, i5-4202Y, i5-4210H, i5-4210M, i5-4210U, i5-4210Y, i5-4220Y, i5-4250U, i5-4258U, i5-4260U, i5-4278U, i5-4288U, i5-4300M, i5-4300U, i5-4300Y, i5-4302Y, i5-4308U, i5-4310M, i5-4310U, i5-4330M, i5-4340M, i5-4350U, i5-4360U, i5-4400E, i5-4402E, i5-4402EC, i5-4410E, i5-4422E, i5-4430, i5-4430S, i5-4440, i5-4440S, i5-4460, i5-4460S, i5-4460T, i5-4570, i5-4570S, i5-4570T, i5-4570TE, i5-4590, i5-4590S, i5-4590T, i5-4670, i5-4670K, i5-4670S, i5-4670T, i5-4690, i5-4690S, i5-4690T, i7-4500U, i7-4510U, i7-4550U, i7-4558U, i7-4578U, i7-4600M, i7-4600U, i7-4610M, i7-4610Y, i7-4650U, i7-4700EC, i7-4700EQ, i7-4700HQ, i7-4700MQ, i7-4702EC, i7-4702HQ, i7-4702MQ, i7-4710HQ, i7-4710MQ, i7-4712HQ, i7-4712MQ, i7-4720HQ, i7-4722HQ, i7-4765T, i7-4770, i7-4770K, i7-4770S, i7-4770T, i7-4770TE, i7-4771, i7-4785T, i7-4790, i7-4790S, i7-4790T, i7-4800MQ, i7-4810MQ, i7-4900MQ, i7-4910MQ, i7-4930MX, i7-4940MX, i7-5820K, i7-5930K, i7-5960X, 2000E, 2002E, 2950M, 2955U, 2957U, 2961Y, 2970M, 2980U, 2981U, 3550M, 3556U, 3558U, 3560M, 3560Y, 3561Y
? Broadwell i7-5557U, i7-5550U, i7-5500U, i7-5650U, i7-5600U, i5-5287U, i5-5257U, i5-5250U, i5-5200U, i5-5350U, i5-5300U, i3-5157U, i3-5010U, i3-5005U, 3805U, 3755U, 3205U, 5Y71, 5Y70, 5Y51, 5Y31, 5Y10c, 5Y10a, 5Y10
