VMware Tools for Fedora 32 aarch64 on ESXi-Arm

VMware Tools is a set of utilities and drivers that improve the performance and management of your Virtual Machines. They are essential when running VMs on ESXi. With the recently released ESXi Arm Edition Fling, you want to make sure that you have them installed.

Fedora is a Linux distribution developed by the community-supported Fedora Project. Fedora contains software distributed under various free and open-source licenses and aims to be on the leading edge of free technologies.

Unfortunately, a compiled version of open-vm-tools for aarch64 is not available for many common Guest Operating Systems, so you have to compile them from VMwares Repository at GitHub.

This article explains how to compile open-vm-tools for Fedora 32 aarch64.

Prerequisites
Fedora 32 (aarch64) installed as a Virtual Machine on ESXi-Arm Fling.
Fedora Download: https://getfedora.org/en/server/download/
ESXi Arm Edition: https://flings.vmware.com/esxi-arm-edition
open-vm-tools Documentation: https://github.com/vmware/open-vm-tools

Installation

  1. Open a Terminal or connect with SSH to your Fedora 32.
  2. Install tools and libraries that are required to build open-vm-tools.
    # yum install -y git automake make libtool gcc gcc-c++ libmspack-devel glib2-devel pam-devel openssl-devel libxml2-devel xmlsec1-devel libX11-devel libXext-devel libXinerama-devel libXi-devel libXrender libXrandr-devel libXtst-devel gdk-pixbuf2-xlib-devel gtk3-devel gtkmm30-devel libtirpc-devel rpcgen libtool-ltdl-devel
  3. Clone VMware's official open-vm-tools repository from GitHub.
    # git clone https://github.com/vmware/open-vm-tools.git
    # cd open-vm-tools/open-vm-tools/
  4. Compile open-vm-tools.
    # autoreconf -i
    # ./configure --disable-dependency-tracking
    # make
    # make install
    # ldconfig
  5. Create a unit file. The file is required to run vmtoolsd as service with systemd.
    # cat > /etc/systemd/system/vmtoolsd.service << EOF
    [Unit]
    Description=Service for virtual machines hosted on VMware
    Documentation=http://github.com/vmware/open-vm-tools
    After=network-online.target

    [Service]
    ExecStart=/usr/local/bin/vmtoolsd
    Restart=always
    TimeoutStopSec=5

    [Install]
    WantedBy=multi-user.target
    EOF
  6. Enable and start the open-vm-tools service.
    # systemctl enable vmtoolsd.service
    # systemctl start vmtoolsd.service

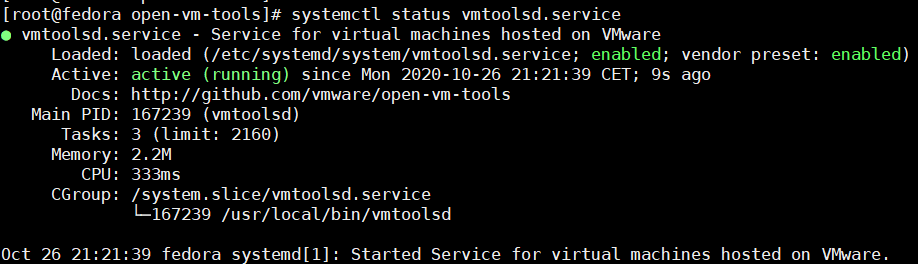

  7. Verify that open-vm-tools are running
    # systemctl status vmtoolsd.service

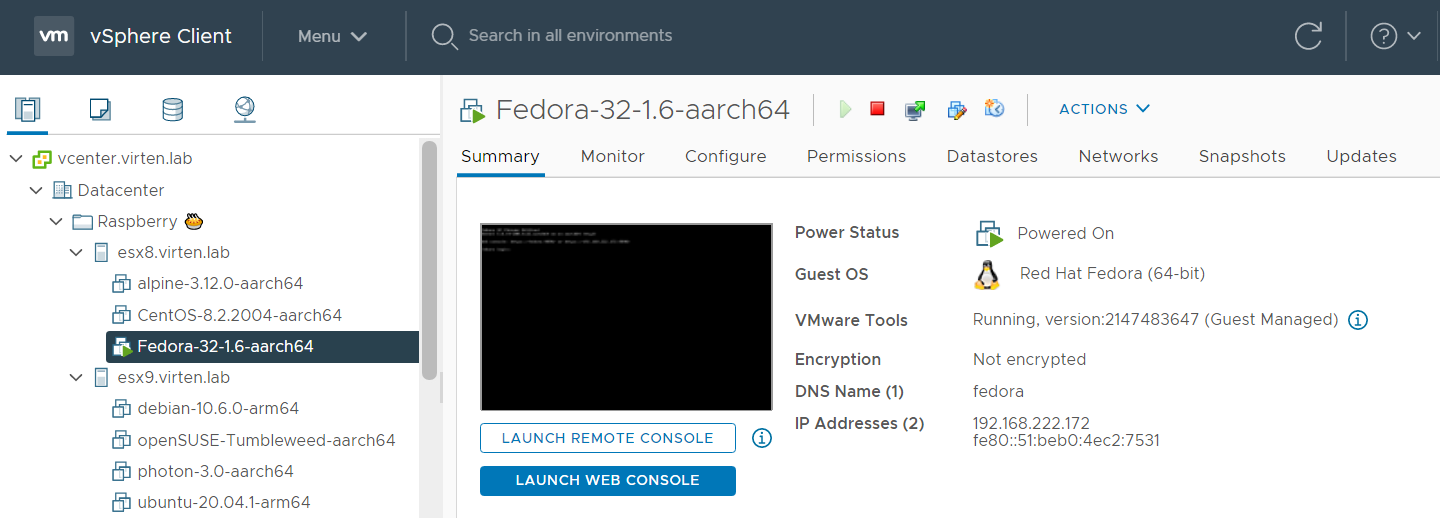

You should now see that VMware Tools are running in the vSphere Client.
