Tanzu Kubernetes Licensing in vSphere 7.0 Update 1

With the release of vSphere 7.0 Update 1, VMware introduced a new licensing model for its Tanzu Kubernetes integration. Basically, the licensing has been changed from an ESXi-Host license to a Cluster license that looks familiar to the vSAN license which is in place for a couple of years. The change does only affect how you have to apply the license. The entity to pay for is still a physical CPU.

In vSphere 7.0 GA, the license required to enable Kubernetes (aka. "Workload Management") was an add-on license for ESXi Hosts named "vSphere 7 Enterprise Plus with Kubernetes". With the introduction of vSphere 7.0 Update 1, which is also referred to as 7.0.1, "vSphere add-on for Kubernetes" has been rebranded and split into 4 licenses Tanzu Basic, Tanzu Standard, Tanzu


As of today, only Tanzu Basic and Tanzu Standard is available to customers. The Advanced and Enterprise editions will be available in the future. Each Tanzu is a superset of the one below, giving customers a clear path to add capabilities over time as needed.

Tanzu Basic is where you get started. It's a simple and affordable Kubernetes integration that is intrinsically tied to vSphere. You can either use NSX-T (requires additional licensing) or with a "bring your own" network strategy that utilizes vSphere Distributed Switch Portgroups and HAProxy load balancing.
Additional Information: VMware Tanzu Basic Solution Brief

Tanzu Standard is for organizations that want to operate a Kubernetes-based container solution across multiple clouds. It provides the flexibility to extend a consistent Kubernetes distribution across on-premises and public clouds. Tanzu Standard can be licensed as an add-on for vSphere, or with VMware Cloud Foundation.
Additional Information: VMware Tanzu Standard Solution Brief

Tanzu Basic Tanzu Standard
vSphere Pod Service YES YES
Storage Service YES YES
Network Service NSX-T / BYO NSX-T / BYO
Registry Service Harbor Harbor
Antrea Networking YES YES
Calico Networking YES YES
NSX-T Load Balancing YES YES
HAProxy Load Balancing YES YES
Fluent Bit & Fluentd YES YES
Tanzu Mission Control NO YES
Prometheus & Grafana NO YES
Lifecycle management NO YES
Kubernetes cluster management NO YES
Cluster and workload Health NO YES
Centralized Security policy management NO YES
Velero Backup & Restore NO YES
Backup scheduling NO YES
Cluster conformance inspections NO YES
System events and audit logs NO YES
Tanzu Observability Integration NO YES
Tanzu Service Mesh Integration NO YES



NSX-T vs. Bring Your Own
vSphere 7.0 Update 1 decouples the Kubernetes integration from NSX-T. In the first release, NSX-T was a requirement to enable workload management. With Update 1, You do now have the ability to bring your own networking and load balancing.

With bring-your-own vSphere Distributed Switch (vDS) networking, you supply your own load balancer. Each Tanzu Kubernetes cluster is on a private network. Kubectl requests come into the cluster load balancer, which then forwards the requests to the Tanzu Kubernetes cluster control plane API server or servers. A Supervisor Cluster that is backed by a vSphere Distributed Switch uses distributed port groups as Workload Networks for namespaces.

With NSX-T networking, when you create a Supervisor Namespace, an NSX-T segment is defined for each namespace. This segment is connected to the NSX-T Tier-1 gateway for the Supervisor Cluster network. When a new Tanzu Kubernetes cluster is provisioned in a Supervisor Namespace, a new Tier-1 gateway is created. For each Tanzu Kubernetes cluster that is provisioned in that namespace, a segment is created for that cluster and it is connected to the Tier-1 gateway in its Supervisor Namespace.

NSX-T Bring Your Own
Networking NSX-T Segments vDS Port Groups
Load Balancing NSX-T Load Balancer HAProxy
vSphere Pod service Available Not Available
Registry service (Harbor) Available Not Available



Evaluating Tanzu in vSphere 7.0 Update 1
Evaluating Tanzu is as simple as evaluating ESXi and vCenter. There is no need to get "Evaluation" licenses. You just get the bits, install everything and the 60-day evaluation begins. The integration using NSX-T hasn't changed much since vSphere 7.0 GA. You can still follow my "Getting Started Guide - VMware vSphere with Kubernetes" to deploy Kubernetes on your existing Cluster using NSX-T. The only major difference is that you do now have the option to configure "vCenter Server Network" (aka. "Bring your own networking").

Upgrading "vSphere with Tanzu"-enabled vSphere 7.0 to vSphere 7.0 U1

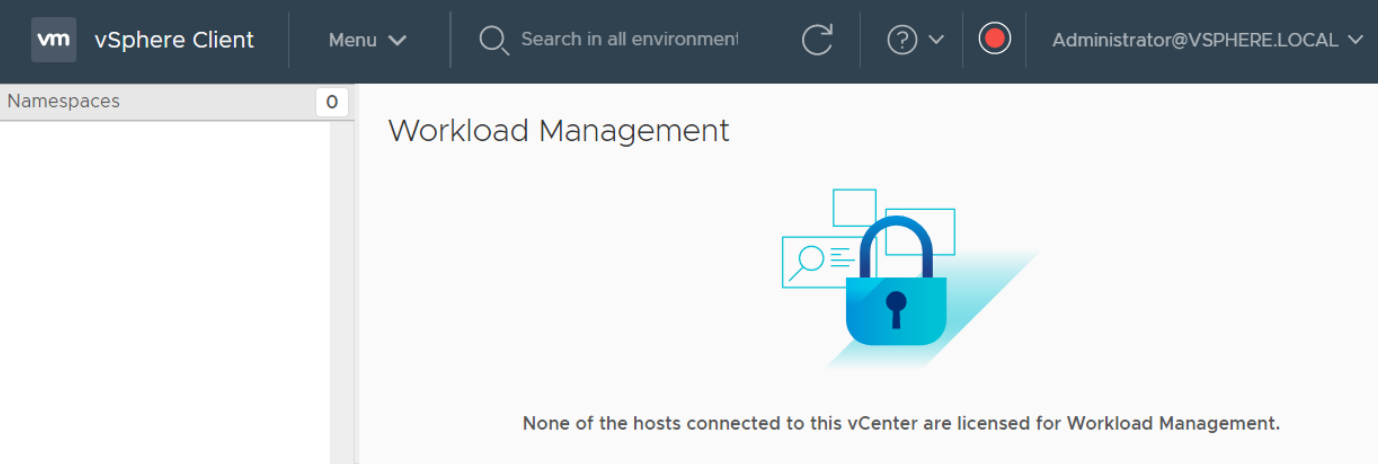

Directly after upgrading the vCenter to 7.0 Update 1, it is likely that the Workload Management page welcomes you with the following message:
Currently, there is a bug in the vCenter software that displays the following error message when you open Workload Management, regardless of the actual licensing state. The bug also happens when you've been previously logged in to the vCenter and reboot the vCenter Appliance.

None of the hosts connected to this vCenter are licensed for Workload Management.

To regain access to the Workload Management page, you have to clear cookies or use incognito mode. The problem sometimes also vanishes if you simply wait for some while. It is only a User-Interface bug. If you access Workload Management using the API, everything works fine.



vSphere
If you are running ESXi Hosts in evaluation mode, which was common for testing or homelab environments as the "Enterprise Plus" license is not capable of running Tanzu, you might want to switch your license back to Enterprise Plus. After assigning the new license to the Supervisor Cluster, you might get the following error message:

The license does not support some of the features that assets currently use.


This issue happens when you have upgraded the vCenter to 7.0 U1, but the ESXi hosts are still running on 7.0. If you update ESXi hosts to ESXi 7.0 Update 1 (Build 16850804 or greater), you can revert the evaluation license back to your normal license.

  1. Tanzu Observability and Tanzu Service Mesh are not pat of Tanzu Standard. It is just integration.
    On the other hand Tanzu Mission Control is part of STD.
    Harbor with standard can be used on VM with Photon.

    • Thanks for the clarification. I fixed the "Integration" part for Tanzu Observability and Tanzu Service Mesh.

      The Mission Control part can be found here: https://tanzu.vmware.com/mission-control ("What is the pricing of Tanzu Mission Control?"). I didn't found that earlier anywhere else. I missed it in the Solution Brief -> https://d1fto35gcfffzn.cloudfront.net/tanzu/VMware-Tanzu-Standard-Solution-Brief.pdf (Or is Mission Control meant with "Kubernetes cluster management" and/or "Lifecycle Management",..)

      What exactly are you saying with the Harbor part? From my understanding, Harbor and Photon are both free, so everyone can install Harbor on Photon independently from Tanzu. Or is there something I'm missing? With NSX-T, you have that "one-click-activation" native Harbor Pod stuff. Is there something similar with BYO networking?
