ESXi 5.5 - ESXCLI Command Mindmap

In vSphere 5.5 the command line interface esxcli has 3 new namespaces. The esxcli is a complete set of commands that you can use for troubleshooting, configuration or kickstart files. I have created and printed a mindmap to navigate through the namespaces more quickly. This post covers only basic namespaces, available on all ESXi 5.5 hosts. If you've installed additional software you might see more namespaces. I've also created a Mindmap for ESXi 5.1 some time ago.

ESXCLI in version 5.5 has 13 namespaces:

Available Namespaces:
  device                Device manager commands
  esxcli                Commands that operate on the esxcli system
                        itself allowing users to get additional information.
  fcoe                  VMware FCOE commands.
  graphics              VMware graphics commands.
  hardware              VMKernel hardware properties and commands for configuring
                        hardware.
  iscsi                 VMware iSCSI commands.
  network               Operations that pertain to the maintenance of networking
                        on an ESX host. This includes a wide variety of commands
                        to manipulate virtual networking components (vswitch,
                        portgroup, etc) as well as local host IP, DNS and general
                        host networking settings.
  sched                 VMKernel system properties and commands for configuring
                        scheduling related functionality.
  software              Manage the ESXi software image and packages
  storage               VMware storage commands.
  system                VMKernel system properties and commands for configuring
                        properties of the kernel core system.
  vm                    A small number of operations that allow a user to Control
                        Virtual Machine operations.
  vsan                  VMware VSAN commands.

esxcli

DEVICE (New in vSphere 5.5)
The device namespace decrypts hardware information from device aliases (vmnic/vmhba).
esxcli_device

ESXCLI
The esxcli namespace can be used to list all available namespaces and commands. I've used this command to get the list, export it to a CSV file to create this mindmaps.
esxcli_esxcli

FCOE
The fcoe namespace has Fibre Channel over Ethernet discovery and adapter listing capabilities.
esxcli_fcoe

GRAPHICS (New in vSphere 5.5)
The graphics adapter manages hardware-accelerated 3D graphics for virtual machines.
esxcli_graphics

HARDWARE
The hardware namespace can be used to gather information about the physical hardware.
esxcli_hardware

ISCSI

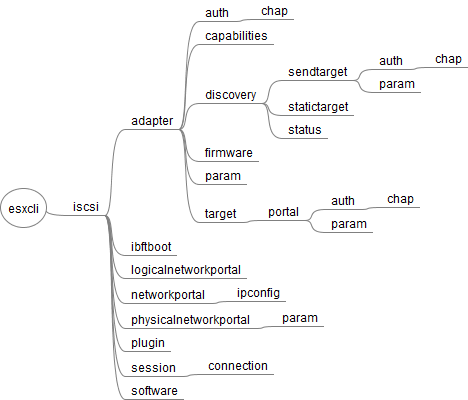

The iscsi namespace can be used to configure iscsi adapters. This can be really helpful in kickstart scripts, to configure shared storage arrays.
esxcli_iscsi

NETWORK
The network namespace is the most powerful namespace. You can configure local vSwitches and Distributed Virtual Switches (dvSwitch). You can also manage the local IP address and firewall configuration. This is a must have in your automated ESXi installation workflow.
esxcli_network

SCHED
This sched namespace manages VMKernel scheduling functions.
esxcli_sched

SOFTWARE
The software namespace can be used to install updates and additional packages. It also allows you to set the software acceptance level to use vib packages created by the community.
esxcli_software

STORAGE

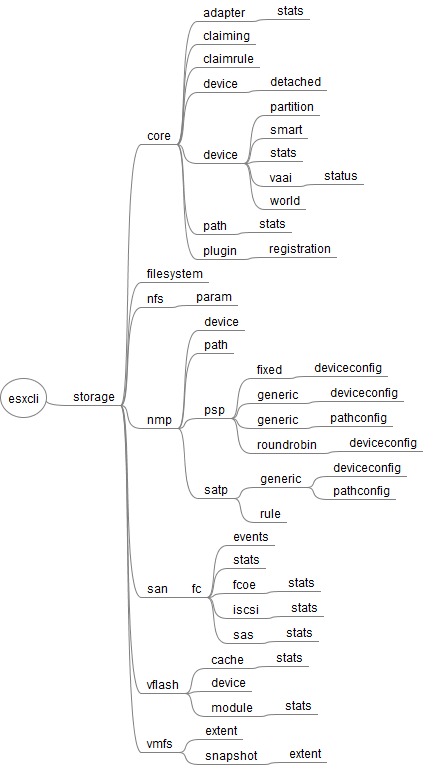

The storage namespace has a lot of use cases. You can configure lun masking, mount nfs shares, manage vmfs filesystems and investigate the path configuration.
esxcli_storage

SYSTEM
Any ESXi host related configuration tasks can be performed with the system namespace.
esxcli_system

VM
The vm namespace is useful during troubleshooting. It can be used to forcibly kill virtual machines that are stuck and not responding to normal stop operations.
esxcli_vm

VSAN (New in vSphere 5.5)
The vsan namespace manages the Virtual SAN feature, introduced with vSphere 5.5.
esxcli_vsan

All together
This is a complete mindmap of all esxcli commands. It's quite large, but if you print it to A4 or letter, you can still read it.
esxcli_55_command_mindmap
