VMware ESXi 3.5 - 6.7 Hypervisor Size Comparison

The VMware bare-metal hypervisor ESXi is in the market for over 10 years now. During that time it has been continuously refined and added with new features. Since vSphere 5.0, the hypervisor size is very constant and has not increased severely. In this post, I am going to have a look at how much the hypervisor footprint has been changed from ESXi 3.5 to ESXi 6.7.

  • ESXi 3.5 - 46,01 MB
  • ESXi 4.0 - 59,99 MB
  • ESXi 4.1 - 85,19 MB
  • ESXi 5.0 - 132,75 MB
  • ESXi 5.1 - 125,85 MB
  • ESXi 5.5 - 151,98 MB
  • ESXi 6.0 - 154,90 MB
  • ESXi 6.5 - 135,39 MB
  • ESXi 6.7 - 129,51 MB

How did I determine the Hypervisor Size?
According to VMware documentation, the footprint of ESXi 5 was 144MB and 150MB in ESXi 6. I could not reconstruct that completely so I compared the following packages:

  • The "image" package in ESXi 3.5
  • The "firmware" package in ESXi 4.x
  • The "esx-base" vib package in ESXi 5.x and 6.x
  • All "esx-" and "vsan-" packages since 6.0u2 including 6.5 and 6.7

Within a major release, the size does not change much. This is a full table since vSphere 4.0:

ESXi Size
4.0 57,80 MB
4.0 U1 58,82 MB
4.0 U2 59,11 MB
4.0 U3 59,72 MB
4.0 U4 59,97 MB
4.1 85,45 MB
4.1 U1 85,89 MB
4.1 U2 85,25 MB
4.1 U3 85,27 MB
5.0 133,64 MB
5.0 U1 132,32 MB
5.0 U2 132,27 MB
5.0 U3 132,56 MB
5.1 124,60 MB
5.1 U1 124,88 MB
5.1 U2 125,67 MB
5.1 U3 125,85 MB
5.5 151,52 MB
5.5 U1 152,24 MB
5.5 U2 151,71 MB
5.5 U3 153,76 MB
6.0 154,96 MB
6.0 U1 156,07 MB
6.0 U2 158,27 MB
6.5 135,39 MB
6.5 U1 136,39 MB
6.7 129,51 MB

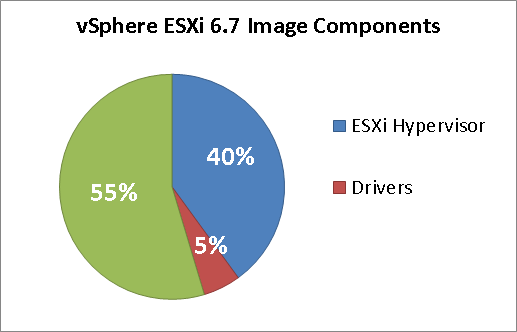

The size of an ESXi 6.7 ISO Image is 325 MB. What are the other image components?

Package Size
Hypervisor 130 MB (40%)
Drivers 18 MB (5%)
VMware Tools Images 178 MB (55%)
